This guide explains the practical differences between Dreame robot vacuum and mop combos, organized by price and generation—from older, budget-friendly models to the latest premium devices. We focus on the features that Dreame builds into every model and then look at how each series adds more advanced functions. Our aim is to help you decide which series and which model best fits your cleaning needs.
Dreame Series Overview
Dreame has five active series: the D series, the L series, the X series, the Aqua10, and the Matrix10. Model numbers generally indicate where a product family sits within a series, with higher numbers usually corresponding to newer or more advanced families. However, refreshes and variants can break that pattern, so the exact model name matters as much as the number.
The D series is the entry level series. The D series got a refresh with the recent 2025 Dreame Product release with more advanced suction, anti-tangle brushes, and other upgrades. Jump to D Series
The L series has the widest range of prices and feature combinations in Dreame’s lineup, spanning lower mid-range models through premium configurations. It includes the L10s family, the L20 Ultra, L40 and L40s families, the L50 Ultra, and the newer L60 family. Some newer L robots carry many of the advanced features found on the premium X series, sometimes with comparable price tags. Jump to L Series
The X series is Dreame’s flagship premium series and is where the company typically introduces its most advanced navigation, obstacle avoidance, threshold-climbing, brush, mopping, and dock technologies. X-series robots have repeatedly reached the No. 1 position in our Top 20 robot vacuum rankings in recent years. Jump to X Series
The Aqua10 series, released late in 2025, is Dreame’s first robot vacuum with a rolling mop system. Kitted out with some of the biggest advancements in Dreame Technology, the Aqua10 series is currently made up of 2 models. Jump to Aqua10.
The Matrix10 was announced alongside the Aqua10 models in 2025. With a unique multi-pad mopping system managed in the dock, the Matrix10 is the most advanced Dreame robot to date. This category has only one model so far. Jump to Matrix10.
Evolution of the Mopping Design
For a long while, Dreame maintained a consistent cleaning strategy. The first major change came with the L series, which introduced dual rotary mopheads in place of the older plate mop, which has to be manually removed and cleaned between uses. This switch to spinning mopheads opened the door to extending mop heads, automatically detaching mop heads, and mop maintenance in the dock, dramatically increasing hands-free cleaning.
Core Technologies
- Vormax™ Suction System: All Dreame models use this trademarked suction technology. The suction power climbs with the robot lineup as each new generation improves performance.
- Mopping/Vacuum Combo: All current robots in the Dreame brand have a mopping ability, but the entry level D series lacks certain automations.
- Brush Systems: Dreame uses three main brush approaches: a single rubber brush, the TriCut anti-tangle brush, and the HyperStream DuoBrush. In our testing, the DuoBrush has been the strongest overall design for resisting hair tangles, while TriCut is a useful upgrade over the basic single rubber brush.
- Pathfinder Smart Navigation: Dreame robots use LiDAR-based mapping and multi‑floor route planning to cover your home efficiently.
- App Control & Voice Integration: Each model supports control via the DreameHome app and is compatible with third‑party voice assistants like Alexa, Siri, and Google Assistant.
Naming Conventions
Dreame model names are best read as a simple family tree: series letter + family number + dock or variant designation. The series letter identifies the lineup, the number identifies the product family, and names such as Plus, Ultra, Pro Ultra, Master, Gen 2, AE, CE, FE, or PE indicate dock configurations, refreshes, or variants. This is especially important in the L series, where similarly named models can have substantially different hardware and smart features.
- “Max” and “Complete” generally indicate especially feature-rich configurations, but Dreame does not use these terms consistently enough to treat them as a strict tier in the naming hierarchy.
- “Pro” refers to an enhanced version of a robot model. If a robot is named a “Pro” only, then it doesn’t include a dock.
- “Plus” includes a dock with an auto-empty dustbin.
- “Ultra” includes a dock with an auto-empty dustbin and mop-washing.
- “Pro Ultra” means an enhanced version of a robot with a dustbin-emptying and mop-washing “ultra” dock.
- “Master” indicates that the dock is integrated into the plumbing of your house without its own water tanks.
- “s” (as in L10s or L40s): Dreame tags “s” at the end of a family name to mark a sub-generation refresh, typically including upgrades to the robot’s intelligence or hardware.
Dreame also uses cryptic letters for some variants, such as AE, CE, FE, and PE, and those suffixes do not reliably tell you whether a model is more or less advanced. A variant is not necessarily a stripped-down version of the base model, and a Gen 2 model is not automatically an upgrade in every respect. We recommend comparing the exact model’s brush system, obstacle avoidance, dock functions, and other hardware rather than shopping by model number or suffix alone.
Which Dreame Main Brush Is Best?
Based on our studio testing, the HyperStream DuoBrush is the strongest of Dreame’s three main brush designs for hair management, with an almost perfect record in our hair-tangle testing and strong results removing pet hair flattened into carpet.

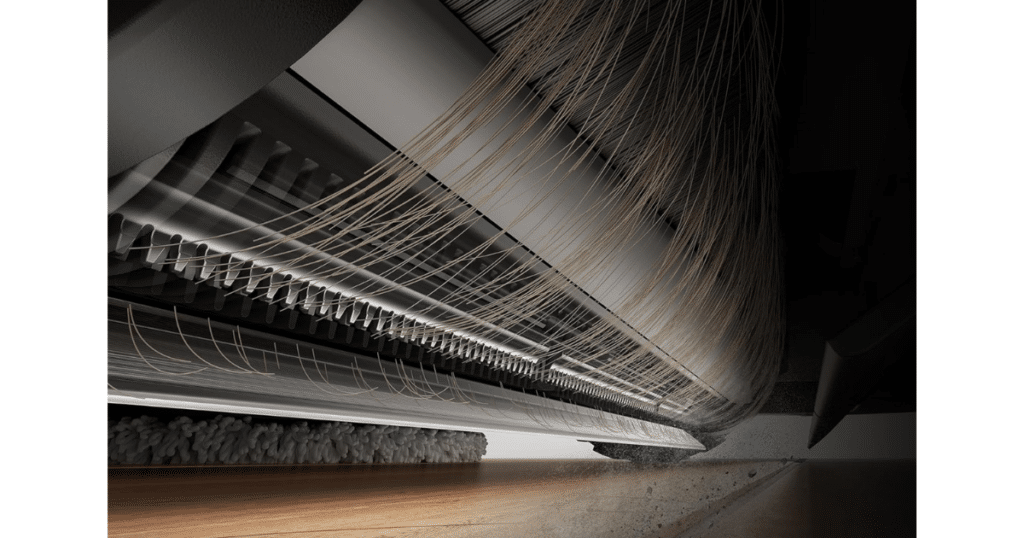

The TriCut is a useful step up from the basic single rubber brush because it slices long hair before it can wrap around the roller. A robot designed for a single rubber brush can often be upgraded to a TriCut, but it cannot simply be converted to a DuoBrush because the brush housing is different.
Dreame D Series: Entry Level Models
Dreame D Series Overview
The D series represents Dreame’s entry level models. The earlier models in the D series are your ‘no-frills, just clean the floor’ option. Starting with the D20 models, the series becomes more automated and feature-rich, with prices rising with the feature set.
In recent generations, Dreame has expanded the D-series significantly, and newer models sometimes overlap in features and pricing. Some models prioritize suction power, while others focus on obstacle avoidance or dock automation, so the “best” D-series model depends heavily on your home layout and maintenance preferences.
Budget Does Not Necessarily Mean Weak Pickup
In our studio testing, the budget D20 Plus earned one of our five highest carpet sand-cleaning scores to date. Moving up the Dreame lineup is often more about added automation, obstacle avoidance, mopping, and dock features than simply basic pickup ability.

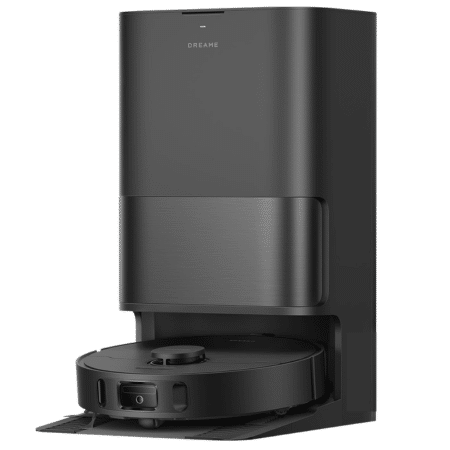

Dreame D30 Ultra
Vacuum Wars Stars 3.29
The Dreame D30 Ultra adds an all-in-one dock and automated mopping to Dreame’s entry-level D series. It delivered strong debris pickup, above-average carpet deep cleaning, efficient navigation, and excellent battery efficiency. However, obstacle avoidance was weak, mopping was best suited to light cleaning, and pet-hair pickup fell below average. It is a practical option for larger homes that prioritize efficient vacuuming over advanced mopping or pet-hair performance. See additional info
Dreame D30 Ultra CE
The Dreame D30 Ultra CE brings together dual spinning mops, LiDAR mapping, and a dock that empties debris, washes and dries the mop pads, and cleans its washboard. Dreame rates suction at 25,000 Pa, while automatic mop lifting helps with transitions onto carpets. Multi-floor maps, no-go zones, and app scheduling offer control over where and when it cleans. Its mop pads are fixed, and the optional TriCut hair-cutting brush is sold separately. Vacuum Wars has not published studio test results for this model. See additional info
Dreame D20 Air Plus
The Dreame D20 Air Plus is an entry-level robot vacuum and mop in Dreame’s D series. Dreame lists 20,000Pa of suction, LiDAR navigation, an anti-tangle bristle brush, and a self-emptying dock with a 4L dust bag rated for up to 120 days between changes. Vacuum Wars has not yet tested this model, so these are manufacturer-listed features rather than our studio results. See additional info
Dreame D20+
· avg tested 2.60
The Dreame D20+ is a robot vacuum-mop combo with a self-emptying dock, LiDAR navigation, and an anti-tangle DuoBrush roller. In Vacuum Wars testing, it performed especially well in navigation, battery efficiency, and overall vacuuming performance. It also supports editable maps, virtual barriers, carpet boost, adjustable mopping water levels, and app or voice control. Its mopping system is more basic than the premium Dreame models, but for straightforward vacuuming and automated debris emptying, the D20+ delivered strong results in our studio evaluations. See additional info
Dreame D20 Pro Plus
The Dreame D20 Pro Plus combines a claimed 13,000Pa suction system with an anti-tangle DuoBrush, an extending side brush for improved edge reach, LiDAR navigation, and 3D structured-light obstacle avoidance. Its dock automatically empties the robot’s dustbin, while the robot also supports mopping, multi-level mapping, virtual barriers, no-go zones, app controls, and third-party voice assistants. See additional info
Dreame D Series Features
D Series Navigation
Navigation is handled with LiDAR sensors (trademarked as “Pathfinder Navigation”) and basic obstacle detection. They use an impact plate sensor (which means it may gently bump into stuff before it senses anything, then moves along or around the obstacle until it senses the path is open again).
The new D20 Pro Plus, which was released in mid-2025 with the addition of 3D structured light obstacle avoidance, followed in early 2026 with the D30 Ultra and D30 Ultra CE. These are the only D-series models with a dedicated Obstacle Avoidance System.
D Series Mopping
Budget D series models use a plate mop system. This mop pad is pulled behind the robot, while the water tank replenishes the water in the pad at 3 adjustable rates of flow. The plate mop has to be removed and cleaned between uses, and it will not lift over carpets, so you will need to do separate runs for mopping and vacuuming.
The D30 Ultra and its variant D30 Ultra CE is unique, having the most automated mopping system in the D-series so far. It features:
- dual rotary mops (DuoScrub)
- MopExtend edge reach
- 10.5mm mop lift
- dock washing + drying + water tanks
On Mop Automation
In our opinion, one of the biggest direct effects on the user experience of having a robot vacuum/mop combo is having to manually remove and clean mop pads yourself. A plate mop will do a fine job of mopping your floor, but you have to add or remove the pad and conduct different runs for mopping and vacuuming, which can become a hassle in a home with a lot of transitions between hard floors and carpets.
If this sounds too hands-on for you, consider the D30 Ultra and D30 Ultra CE, or a model in the L series starting at the L10s Ultra, where the mop washing and drying, detergent dispensing, and tank refilling is handled for you in the dock. Jump to L series
D Series Brushes
Many D-series models have a fixed side brush and a “Floating” all-rubber main brush. This brush lifts over carpet and other obstacles to prevent battering the brush or getting stuck. The single rubber brush can be swapped out for the TriCut Anti-Tangle brush which is sold separately. The TriCut slices long hair before it can tangle around the brush and is a good option for households that have a lot of long hair.
The D30 Ultra includes the TriCut brush, while other TriCut-compatible D-models must purchase it separately.
The D20 Plus and D20 Pro Plus exchanged the single brush with the DuoBrush that had been previously reserved for the premium Dreame robots. This was a huge change for the D series, allowing the D20 Plus to manage hair tangles out of the box without purchasing a TriCut add-on.
The D20 Pro Plus and D30 Ultra include an extending side brush and edge sensors to reach into corners.
| Model | TriCut Included | TriCut Sold Separately | DuoBrush | Basic Bristle / Single Rubber Brush |
|---|---|---|---|---|
| D9 Max Gen 2 | Yes | Yes | ||
| D10 Plus Gen 2 | Yes | Yes | ||
| D20 Air Plus | Yes | |||
| D20 Plus | Yes | |||
| D20 Pro Plus | Yes | |||
| D30 Ultra | Yes | |||
| D30 Ultra CE | Yes |
D series Docks
Early members in the D-series does not have much in the way of docking features. The D9 Max Gen 2 has no dock at all, and the D10 Plus Gen 2 and the D20 models have an auto emptying dustbin that empties into a bag in the dock.
Docking became more robust with the D30 Ultra and D30 Ultra CE, and its “Ultra” dock handles mop washing and drying as well as emptying the dustbin and filling the robot’s onboard water tank.
Dreame D Series Models
The D9 Max Gen 2 model comes without a dock: it has a charger only and a larger dustbin to accommodate the greater accumulation of dust. It also has a larger-capacity water tank on board the robot. The robot’s dustbin must be emptied manually.
The D10 Plus Gen 2 model has a smaller water tank than the D9 Max Gen 2 and a smaller dustbin on board the robot. The dustbin is emptied automatically into its accompanying dock, which they claim can go up to 90 days before needing maintenance.
The new D20 Plus and D20 Pro Plus make a significant leap in official suction over the older D models, more than doubling it to 13,000Pa.The D20 Air Plus has a higher official suction rate at 20,000 Pa. The D30 Ultra and D30 Ultra CE increased the official suction again with 25,000Pa. The D20 Pro Plus and D30 Ultra also have a carpet boost feature, which increases suction when it senses carpet.
|
|
|
|
|
|
|
As an Amazon Affiliate, we earn a commission if you make a purchase, at no to you.
Dreame L Series: Mid‑Range Models and Advances in Mopping and Automation
Dreame L Series Overview
The L series moves away from plate mops and introduces dual rotary mop heads, which provide a scrubbing action that the plate mops lack. These models also feature better navigation, enhanced obstacle avoidance, and more advanced docking stations that can empty dustbins and take care of mop maintenance. These models lift their mops over carpet, so you don’t have to do separate mop and vacuum runs, greatly enhancing automation.
The Dreame L series includes six major families or refresh groups: the L10s, L20, L40, L40s, L50, and L60. The L10s family has multiple members, and the later L40 and L60 families also include variants with meaningful differences in hardware and smart features. The naming conventions listed above are especially important when comparing L-series models.
All models in the L series except for the L10s Pro Gen 2 have an auto empty dustbin (the L10s Pro Gen 2 has no dock, only a charger), and the L10s Plus is the only robot with a dock that does not have automated mop washing. All L models with mop maintenance (an ‘Ultra’ dock) include Auto Detergent Dispensing.
In spring of 2026, Dreame introduced 4 new L-series models, the L60 Pro Ultra, L60 Ultra, L60 Ultra PE, and L60 Ultra FE. The L60 lineup introduces dramatically higher suction power, 100°C ThermoHub mop cleaning, updated DuoBrush systems, and advanced smart-home integration.
Don’t Shop the L Series by Model Number Alone
Two robots in the same family can be very different. For example, the L60 Pro Ultra and L60 Ultra FE differ substantially in smart features and hardware, and Dreame’s variant suffixes do not create a dependable good-better-best hierarchy. Check the exact brush, o
bstacle-avoidance system, dock functions, and other features for the model you are considering.
Dreame L10s Ultra Gen 2
The Dreame L10s Ultra Gen 2 is an automated robot vacuum and mop with a manufacturer-rated 10,000Pa of suction, dual spinning mop pads, and MopExtend edge cleaning. Its all-in-one dock automatically empties the dustbin and washes and dries the mop pads, while LiDAR navigation and structured-light obstacle sensing help it map and move around the home. Dreame also lists automatic mop lifting for carpets, fast charging, and app-based cleaning controls. See additional info
Dreame L10s Ultra
Vacuum Wars Stars 2.78 · avg tested 2.60
The Dreame L10s Ultra combines automatic dust collection, dual spinning mop pads, mop washing and heated-air drying, LiDAR navigation, and camera-based obstacle avoidance. In Vacuum Wars studio testing, it delivered especially strong overall cleaning performance and handled pet-related cleaning well. Its dock automates much of the routine maintenance, while the robot can lift its mop pads over carpet and supports multi-level mapping, virtual barriers, and app-based controls. See additional info
Dreame L10s Pro Ultra Heat
The Dreame L10s Pro Ultra Heat combines a 7,000Pa manufacturer-rated suction system with dual spinning mop pads, automatic mop lifting, and an extending mop pad for improved edge coverage. Its dock can automatically empty the dustbin, wash the mop pads with hot water, dry them, and dispense detergent. The robot also uses spinning LiDAR navigation with obstacle avoidance and supports multi-level maps, no-go zones, room-specific cleaning, and recharge-and-resume. See additional info
Dreame L20 Ultra
Vacuum Wars Stars 2.82
The Dreame L20 Ultra, Vacuum Wars’ Best Overall Robot Vacuum of 2023, is a premium robot vacuum and mop with 7,000 Pa of official suction. Its floating anti-tangle brush and side brush provide effective debris pickup on hard floors and carpets, while dual spinning mop pads apply downward pressure for dried-stain cleaning. MopExtend moves one pad outward for better edge coverage, and the pads can lift 10.5 mm or detach at the dock to protect carpets. The automated base station empties debris into a 3.2-liter dust bag, washes the mop pads, refills water, dries the pads with warm air, and uses a removable cleaning tray. Spinning LiDAR, AI, and 3D structured light support navigation and obstacle avoidance with recognition for 55 object types. The app includes multi-level maps, virtual barriers, no-go zones, carpet boost, and live video monitoring. Its drawbacks include a premium price and average crevice and carpet deep-cleaning performance. See additional info
Dreame L40s Ultra AE
Vacuum Wars Stars 3.56
The Dreame L40s Ultra AE is a robot vacuum-mop combo equipped with 19,000 Pa Vormax™ suction, a TriCut 3.0 anti-tangle brush, and intelligent obstacle avoidance via RGB AI + 3D structured light. It has a 5,200 mAh battery, a 395 ml dust box, and clean/dirty water tanks of approximately 4.5 L / 4.0 L. The all-in-one PowerDock auto-empties for up to 100 days, washes pads with 75 °C hot water, hot-air dries, auto-cleans the washboard, and auto-adds solution. App control and Alexa voice control are supported. For homes with pets, it recognizes pet-area objects (bowls, litter boxes) so you can clean around or avoid them, and it includes live video monitoring with two-way audio for pet check-ins. See additional info
Dreame L40s Ultra CE
Vacuum Wars Stars 3.13
The Dreame L40s Ultra CE is a robot vacuum and mop combo designed to provide the core smart features of the L40s series at a lower price point. It combines 13,000 Pa Vormax suction with a TriCut anti-tangle main brush and a DuoScrub dual-spinning mop system. Ultrasonic carpet detection automatically raises the mop pads approximately 10.5 mm to help keep carpets dry and adjusts suction for carpet cleaning. Its PowerDock base station automatically empties debris into a 3.2-liter dust bag, refills clean water, washes the mop pads, and dries them with heated air. RoboSwing technology helps the mop pads reach difficult areas, while the robot also supports carpet boost, multi-level maps, virtual barriers, no-go zones, app controls, and third-party voice assistants. It uses spinning LiDAR for navigation, structured light for obstacle avoidance, and has an official battery life of up to 260 minutes. See additional info
Dreame L40s Ultra
Vacuum Wars Stars 3.44
The Dreame L40s Ultra is a robot vacuum and mop combo with 19,000 Pa of suction and a tangle-resistant HyperStream DuoBrush that combines a bristled rubber brush with a TPU rubber brush for hard floors and carpets. Its PowerDock automatically empties the dustbin into a 3.2-liter bag, washes the mop pads with water heated to approximately 167°F, dries the pads with heated air, refills water and cleaning solution, and cleans itself. The robot can lift its mop pads and brushes, leave the mop pads at the dock, or avoid carpets entirely, while Smart Carpet Care can boost suction or add extra vacuuming passes. An extending mop pad and side brush improve reach along edges, and the chassis can cross thresholds up to 40 mm. Additional features include four-level mapping, virtual barriers, no-go zones, app controls, Alexa and Google Home integration, spinning LiDAR navigation, and 3D structured-light obstacle avoidance. Its official battery life is approximately 220 minutes. See additional info
Dreame L40 Ultra Gen 2
Vacuum Wars Stars 3.08
The Dreame L40 Ultra Gen 2 combines dual spinning mop pads with an extending side brush and mop for cleaning along edges and corners. Dreame rates its suction at 25,000 Pa, and its LiDAR mapping supports multi-floor maps and no-go zones. The dock empties debris, refills water, washes mop pads, and dries them with heated air. Mop lifting and automatic detachment add flexibility for homes with carpets. Mop washing uses room-temperature water, and automatic detergent dosing requires a separately purchased accessory. See additional info
Dreame L40 Ultra
Vacuum Wars Stars 3.38
The Dreame L40 Ultra is a premium robot vacuum and mop with 11,000 Pa of official suction and strong performance on hard floors and carpets. Its automatically extending, liftable side brush improves corner cleaning, while two spinning mop pads lift 10.5 mm over carpet. MopExtend and RoboSwing improve coverage along edges and beneath furniture, and the robot can leave its mop pads at the dock when vacuuming carpets. The automated station empties debris into a 3.2-liter bag, washes the mop pads with hot water, dries them with heated air, refills clean water and solution, and uses a self-cleaning tray. A camera, structured light, crossed infrared beams, and an LED support obstacle avoidance, while spinning LiDAR handles mapping and navigation. The app adds multi-level maps, virtual barriers, no-go zones, customization, and live video monitoring. Its main tradeoff is hair tangling with the standard brush, although Dreame’s optional TriCut brush substantially improved hair performance in testing. See additional info
Dreame L50 Ultra
Vacuum Wars Stars 3.79
The Dreame L50 Ultra is a robot vacuum/mop combo featuring a ProLeap™ system with retractable legs that enable it to climb over obstacles up to 2.36 in (6 cm) and vertical steps up to 1.65 in (4.2 cm), supported by a shock‑absorbing design rated for 30,000 cleaning cycles. It delivers up to 19,500 Pa of Vormax™ suction and uses a HyperStream™ Detangling DuoBrush to remove debris and long hair (up to 11.8 in) with reduced tangling and noise. With Dual Flex Arm Technology, extendable side brush, and mop reach, it can clean into tight corners and under low furniture; TripleUp Tech allows it to lift mop pads (0.413 in) during vacuuming for multi-surface coverage. Its dock uses the AceClean™ DryBoard system: 167 °F hot‑water cleaning of mop pads across four temperature settings, followed by hot‑air drying, and auto‑empties dust into a 3.2 L bag that lasts up to 100 days. Additional features include AI-driven obstacle avoidance using RGB and 3D structured light, LED path illumination, app control via Dreamehome, and automated water refill with sensor-based rewashing and remopping. See additional info
Dreame L60 Ultra PE
Vacuum Wars Stars 3.86
The Dreame L60 Ultra PE is a midrange robot vacuum and mop with 30,000Pa Vormax suction, a tangle-resistant HyperStream DuoBrush, an extending side brush, dual spinning mop pads operating at 165 rpm with 13N of pressure, 10.5mm mop lift, LiDAR navigation, AI-camera and 3D ToF obstacle avoidance, Matter support, onboard voice control, and a dock that auto-empties, refills water and detergent, washes and self-cleans with boiling water, and dries the pads with hot air. In testing, it scored 94% in carpet deep cleaning, the second-highest result among nearly 200 robots, plus 100% flattened pet-hair pickup with 0% brush wrap. It avoided 21 of 24 obstacles, crossed 19mm thresholds but failed at 25mm, cleaned faster than average, and achieved above-average coverage per charge despite below-average battery efficiency. General pickup was strong, though fine debris scattered slightly on hard floors, crevice pickup was average, stain removal was below average due to low water output, suction and airflow bench scores were low, and the dustbin is small. Dreame’s app offers granular controls, schedules, no-go and no-mop zones, and floor-direction cleaning. Even with a handful of average scores, the L60 Ultra PE was an impressive robot, all the more so for its price range. These results sent the L60 Ultra PE straight to the top of our Top 20 Robot vacuum list. See additional info
Dreame L60 Ultra FE
Vacuum Wars Stars 2.85
The Dreame L60 Ultra FE combines dual spinning mops, an extending side brush and mop, and a TriCut hair-cutting brush. Its dock empties debris, refills water, washes the mop pads with hot water, and dries them with heated air. LiDAR mapping, multi-floor maps, and no-go zones help customize cleaning routines. In our studio evaluations, its scores for cleaning performance and mopping were above average. Obstacle avoidance and flattened pet-hair pickup were weaknesses, so it is better suited to homes with floors kept clear of clutter. See additional info
Dreame L60 Pro Ultra
Vacuum Wars Stars 3.82
The Dreame L60 Pro Ultra is a premium robot vacuum/mop combo that combines powerful cleaning performance with advanced automation and obstacle handling. In Vacuum Wars testing, it achieved 90% sand removal in the carpet deep-clean test, scored above average in suction and airflow testing, removed 93.5% of embedded pet hair from carpet compared to the category average of 82%, and recorded 0% hair tangles in the anti-tangle test thanks to its HyperStream DuoBrush system and anti-tangle side brush. Its AI-powered obstacle avoidance system, which combines a camera, dual-laser 3D structured light, and LED illumination, successfully avoided 22 of 24 objects in testing. The robot also excelled at threshold climbing, clearing a 51mm threshold, and features a low 89mm height for cleaning under furniture. Premium features include dual spinning mop pads with 40°C (104°F) heated water mopping, automatic mop washing with 212°F hot water, hot-air drying, detergent mixing, automatic mop-pad removal for vacuum-only runs, fast charging, Matter compatibility, and one of the industry’s most feature-rich apps. Weaknesses include below-average combined mopping performance due to excessive water usage, below-average navigation efficiency, and lower battery efficiency, which resulted in less area cleaned per charge than average. Overall, its strengths in vacuuming, obstacle avoidance, threshold climbing, and hair handling greatly outweigh its drawbacks. See additional info
Dreame L60 Ultra
The Dreame L60 Ultra combines an 82 mm low-profile body with an extending side brush and mop to reach beneath furniture and along edges. Dreame rates its suction at 35,000 Pa and equips it with a detangling DuoBrush system, dual spinning mops, and automatic mop lifting for carpets. Its dock empties debris, refills water, dispenses cleaning solution, washes the mop pads, and dries them with heated air. AI-enhanced 3D ToF navigation combines a depth sensor, camera, and LED lighting. Vacuum Wars has not published studio test results for this model. See additional info
Watch our coverage of the Dreame Next launch event:
Dreame L Series Features
L series Navigation and Obstacle Avoidance
All L series models use Pathfinder LiDAR navigation with some improvements over the D series. LiDAR combines with 3D structured light for more effective obstacle avoidance, and higher-level models incorporate additional sensors, AI, and a RGB camera for obstacle recognition. The L40 Ultra, the L40s Ultra AE, and the new L60 Pro Ultra and L60 Ultra represent the most advanced navigation systems in the L lineup, combining LiDAR, RGB cameras, AI object recognition, LED lighting, and advanced depth sensing for obstacle avoidance and low-light navigation.
A Word About Cameras
RGB cameras see the spectrum of light that is visible to humans and are widely used in phones and other consumer electronics. In Dreame robots, they are an important part of the brand’s more advanced obstacle-avoidance systems. In our testing, camera-based systems generally perform better at recognizing and avoiding small objects, especially when the camera is paired with structured light and LED illumination. LiDAR navigation and obstacle avoidance are separate capabilities: a robot can map and navigate a home well while still having relatively limited small-object avoidance.
Dreame L models without RGB Cameras
| Model | System used instead of an RGB camera |
|---|---|
| L10s Pro Gen 2 | LiDAR (LDS) + line-laser (structured light) obstacle sensing |
| L10s Plus | LiDAR (LDS) + line-laser (structured light) obstacle sensing |
| L10s Ultra Gen 2 | LiDAR (LDS) + 3D line-laser (structured light) obstacle sensing |
| L40s Ultra | LiDAR (Pathfinder/LDS) + 3D structured light (no RGB/video features) |
| L40s Ultra CE | LiDAR (Pathfinder/LDS) + 3DAdapt structured-light avoidance (no RGB/video features) |
| L60 Ultra PE | Smart Pathfinder + 3DAdapt structured-light obstacle avoidance |
| L60 Ultra FE | LDS navigation + single laser obstacle avoidance |
Note: These models don’t list an onboard RGB camera in their user manuals or hardware specs
The rest of the L series and all of the X series have RGB cameras and their accompanying app features like remote video monitoring.
L series Mopping
As noted before, the Dreame L series makes a big shift from plate mop to dual rotary mopheads, which are two mop pads that spin in opposite directions for a scrubbing action, where the previous D series only used a plate mophead. This greatly increased the automation possible for mopping. These mops lift over carpet, at first only 7mm in the L10s Pro Gen 2, the L10s Plus, and the L10s Ultra, then 10.5mm from the L10s Ultra Gen 2 and onward.
Dual spinning mopheads also allowed for the possibility of automatic mophead detaching, which is first seen on the L20 Ultra and continues through the lineup. We also see:
- MopExtend Technology: Automatically extends the mop pad laterally to clean edges and corners more thoroughly.
- RoboSwing Technology: Provides an active swinging motion to help clean under low furniture and in tight spaces. (Note that some L models, such as the L10s Ultra Gen 2, may only offer MopExtend without the RoboSwing function.)
These are Amazon Links. If you make a purchase, we earn a commission at no additional charge to you.
| L models with MopExtend | L models with RoboSwing | L models with detaching mops |
| L10s Ultra Gen 2 L10s Pro Ultra L10s Pro Ultra Heat L20 Ultra L40 Ultra L40s Ultra L40s Ultra AE L50 Ultra L60 Pro Ultra L60 Ultra L60 Ultra PE L60 Ultra FE | L10s Ultra Gen 2 L40 Ultra L40s Ultra CE L50 Ultra | L20 Ultra L40 Ultra L40s Ultra L40s Ultra AE L50 Ultra L60 Pro Ultra L60 Ultra L60 Ultra PE L60 Ultra FE |
L series Brushes
As in the D series, early L series models have a fixed side brush. The L40 Ultra, the L40s Ultra, the L50 Ultra, and the L60 series have an extending, lifting side brush to reach deeper into corners.
There are three main brush types. The L series robots have a “Floating” all-rubber main brush that lifts over carpet and other obstacles to prevent battering.
The single rubber brush can be swapped out for the TriCut Anti-Tangle brush which is usually sold separately. The TriCut slices long hair before it can tangle around the brush and is a good addition for users with pets or household members with long hair. The L40s Ultra AE and L40s Ultra CE both ship with a TriCut brush, and the L40s Ultra and the L50 Ultra have the detangling DuoBrush that used to be only available on the X series.
| Model | Side brush | Main brush system | Anti-tangle |
|---|---|---|---|
| L10s Pro Gen 2 | Fixed | Floating all-rubber (single) | TriCut sold separately |
| L10s Plus | Fixed | Floating all-rubber (single) | TriCut sold separately |
| L10s Ultra | Fixed | Floating all-rubber (single) | TriCut sold separately |
| L10s Ultra Gen 2 | Fixed | Floating all-rubber (single) | TriCut sold separately |
| L10s Pro Ultra | Fixed | Floating all-rubber (single) | TriCut sold separately |
| L10s Pro Ultra Heat | Fixed | Floating all-rubber (single) | TriCut sold separately |
| L20 Ultra | Fixed | Floating all-rubber (single) | TriCut sold separately |
| L40 Ultra | Extendable + liftable | Floating all-rubber (single) | TriCut sold separately |
| L40 Ultra Gen 2 | Extendable + liftable | Floating all-rubber (single) | TriCut compatibility unknown |
| L40s Ultra | Extendable + liftable | HyperStream / Detangling DuoBrush (dual-roller) | DuoBrush system |
| L40s Ultra AE | Fixed | Liftable rubber or TriCut 3.0 (included swap) | TriCut Included |
| L40s Ultra CE | Fixed | TriCut anti-tangle (single) | TriCut Included |
| L50 Ultra | Extendable + liftable | HyperStream / Detangling DuoBrush (dual-roller) | DuoBrush system |
| L60 Pro Ultra | Extendable + liftable | HyperStream / Detangling DuoBrush (dual-roller) | DuoBrush system |
| L60 Ultra | Extendable + liftable | HyperStream 2.0/ Detangling DuoBrush (dual-roller) | DuoBrush system |
| L60 Ultra PE | Extendable + liftable | HyperStream / Detangling DuoBrush (dual-roller) | DuoBrush system |
| L60 Ultra FE | Extendable + liftable | TriCut anti-tangle 3.0 (single) | TriCut Included |
L series Docks
Except for the L10s Pro Gen 2 (no dock) and the L10s Plus (with only dustbin emptying), all other L models now come with docks that empty the dustbin AND wash and dry the mop pads with a range of days estimated for hands-off maintenance. Some newer models use hot water for faster and more sanitary mop-washing (see table below).
CleanGenius™ dirt detection first appears in the L10s Pro Ultra and becomes standard on Dreame robot vacuums from then on. This technology senses dirt in the dock. If the mop pads are especially dirty, the robot will trigger a rewash of the area where the excess dirt was detected.
Fast Charging is introduced on the L10s Ultra Gen 2 and becomes a standard feature.
Washboard Cleaning, where the part of the dock that cleans the mop pads also cleans itself, first appears on the L40 and becomes a standard dock feature in the X series.
The L60 series further upgrades Dreame’s dock automation with the new 8-in-1 PowerDock system, AceClean™ DryBoard self-cleaning technology, and ThermoHub™ 100°C mop self-cleaning.
These are Amazon Links. If you make a purchase, we earn a commission at no additional charge to you.
| L models with only Auto-empty Dustbin | L Models with Auto-empty dustbins and mop washing/drying | L models with hot water mop washing | L models with Dirt detection | L models with Fast Charging | L Models with Washboard Cleaning |
| L10s Plus | L10s Ultra, L10s Ultra Gen 2, L10s Pro Ultra, L10s Pro Ultra Heat, L20 Ultra, L40 Ultra, L40 Ultra Gen 2, L40s Ultra, L40s Ultra AE, L50 Ultra L60 Pro Ultra L60 Ultra L60 Ultra PE L60 Ultra FE | L10s Pro Ultra Heat, L40 Ultra, L40s Ultra, L40s Ultra AE, L50 Ultra L60 Pro Ultra L60 Ultra L60 Ultra PE L60 Ultra FE | L10s Pro Ultra, L10s Pro Ultra Heat, L20 Ultra, L40 Ultra, L40s Ultra AE, L50 Ultra L60 Pro Ultra L60 Ultra L60 Ultra PE L60 Ultra FE | L10s Ultra Gen 2, L10s Pro Ultra, L10s Pro Ultra Heat, L20 Ultra, L40 Ultra, L40s Ultra, L40s Ultra AE, L40s Ultra CE, L50 Ultra L60 Pro Ultra L60 Ultra L60 Ultra PE L60 Ultra FE | L40 Ultra, L40 Ultra Gen 2, L40s Ultra, L40s Ultra AE, L50 Ultra L60 Pro Ultra L60 Ultra L60 Ultra PE L60 Ultra FE |
L series Suction
Official suction on the L series increases dramatically across generations, reaching up to 35,000Pa Vormax™ suction in the L60 Pro Ultra and L60 Ultra.
These are Amazon Links. If you make a purchase, we earn a commission at no additional charge to you.
| Model | Suction in Pascals |
| L10s Pro Gen 2 | 7,000Pa |
| L10s Plus | 7,000Pa |
| L10s Ultra | 5,300Pa |
| L10s Ultra Gen 2 | 10,000Pa |
| L10s Pro Ultra | 7,000Pa |
| L10s Pro Ultra Heat | 7,000Pa |
| L20 Ultra | 7,000Pa |
| L40 Ultra | 11,000Pa |
| L40s Ultra CE | 13,000Pa |
| L40s Ultra | 19,000Pa |
| L40s Ultra AE | 19,000Pa |
| L40 Ultra Gen 2 | 25,000Pa |
| L50 Ultra | 19,500Pa |
| L60 Ultra FE | 30,000Pa |
| L60 Ultra PE | 30,000Pa |
| L60 Ultra | 35,000Pa |
| L60 Pro Ultra | 35,000Pa |
Special Feature: Threshold clearing
How to Read Threshold Claims
A conventional robot vacuum is generally designed for thresholds around 20 mm, or a little under an inch. Dreame’s much larger advertised figures on newer models often refer to tiered or double-layer thresholds, such as sliding-door tracks, rather than one single vertical step. The maximum single-step height is lower, so check which type of threshold a specification refers to before comparing models.
The L40s Ultra’s EasyLeap clears double-layer thresholds up to 1.57 in (and 0.87 in single-step), a big jump over the L40 Ultra’s ~0.86 in spec and most mid-range robots. This gives the L40s Ultra the ability to climb a tiered threshold of up to 39mm.
Dreame’s ProLeap™ system brings the brand’s most dramatic mobility upgrade to the L series, previously seen only on the flagship X50. Using retractable “legs,” the L50 Ultra can climb single vertical steps up to 1.65 in (≈42 mm) and traverse double-layer thresholds up to 2.36 in (≈60 mm), including sliding-door tracks and U-shaped chair bases.
L60 Pro Ultra upgrades to an enhanced ProLeap system capable of crossing thresholds up to 3.46 inches (88mm), the most aggressive obstacle-clearing specification currently listed in the L-series lineup.
Battery Life and Efficiency
Dreame robots generally score well for battery life in our testing, but more features can also mean more energy use. We often see highly featured premium models post lower overall battery efficiency than simpler robots because advanced sensing, obstacle avoidance, mopping systems, and other functions draw additional power. For larger homes or carpet-heavy floor plans, recharge and resume helps offset this by allowing the robot to return to the dock, recharge, and continue an unfinished cleaning run.
Dreame L series Models
See the L series arranged in order of feature upgrades:
L10s Ultra | L10s Pro Ultra | L40 Ultra Gen 2 | ||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
As an Amazon Affiliate, we earn a commission if you make a purchase, at no additional cost to you.
Dreame X Series: Premium Models and Breakthrough Innovations
Update – August 13, 2025
We’ve published a follow-up with recurring issues and solutions for the Dreame X50 Ultra robot vacuum. Read our Dreame X50 Ultra: Common Complaints (and Fixes) for the latest details.
Dreame X Series Overview
The X series represents Dreame’s higher-end models. They offer the most advanced automation and are designed for users who want a very hands‑off experience. It is in the X lineup where several docking upgrades that were rolled out a little at a time in the L series become standard. Common features across the X series:
- Dual Rotary Mopheads
- Advanced AI Navigation: These models integrate AI with RGB cameras, 3D structured light, LED lights, and LiDAR for precise mapping and obstacle avoidance.
- 6400mAh Batteries: increased battery life and more powerful suction than previous series.
Dreame X60 Max Ultra Complete
Vacuum Wars Stars 4.01
The Dreame X60 Max Ultra Complete is Dreame’s flagship robot vacuum-mop combo, featuring a slim 3.13-inch (79.5 mm) retractable-LiDAR design paired with exceptional 51 mm (2-inch) threshold climbing. It delivers powerful 35,000 Pa suction and uses the HyperStream Duo Divide anti-tangle brush with an extending side brush to improve edge cleaning and prevent hair wrap. In testing, it performed extremely well on hard floors and carpets, achieving an 89% carpet deep-clean score and a rare 100% score in flattened pet-hair pickup. Its upgraded mopping system includes dual spinning pads with warmed water, 15 N downward pressure, 21.5 mm mop lifting, an extending edge mop, and optional mop removal for vacuum-only runs. Obstacle avoidance is another highlight, using binocular AI cameras, edge sensors, and Proactive Illumination to detect objects as small as 1 cm while avoiding 22 of 24 objects in testing. The self-empty dock includes a 3.2 L dust bag, boiling-temperature mop washing, hot-air drying, fast charging (approximately 80 minutes), and automatic detergent and odor-control refilling. Downsides include slightly below-average navigation efficiency, modest battery efficiency and coverage of about 950 square feet per charge, and a relatively small 235 mL onboard dustbin. See additional info
Dreame X60 Ultra
The Dreame X60 Ultra is a premium robot vacuum and mop with a manufacturer-rated 35,000 Pa of suction, an ultra-slim 79.5 mm profile, and threshold-climbing hardware designed to handle transitions up to 88 mm. It combines laser navigation with AI, an RGB camera, and projector lighting for obstacle sensing, while an extending and lifting side brush and DuoBrush main brush help with edge cleaning and hair management. Its automated dock supports warm-water mop care for more hands-off maintenance. Vacuum Wars has not yet tested this model. See additional info
Dreame X50 Ultra
Vacuum Wars Stars 3.62
The Dreame X50 Ultra is a premium robot vacuum and mop with excellent pickup, standout pet-hair handling, capable obstacle avoidance, and advanced mobility for thresholds and low furniture. Its highly automated dock and flexible carpet-protection options make it a fantastic choice for pet owners, busy families, and anyone seeking a hands-off cleaning experience, though its flagship price may give value-focused shoppers pause. See additional info
Dreame X40 Ultra
Vacuum Wars Stars 3.10
The Dreame X40 Ultra is a premium robot vacuum and mop with 12,000 Pa of official suction and strong debris pickup on hard floors and carpets. Its automatically extending and liftable side brush improves corner cleaning, while an extending spinning mop pad reaches along edges and tackles dried stains. The mop pads lift over carpet and can be left at the dock when needed. Its automated base station empties debris into a 3.2-liter disposable bag, washes the mop pads with hot water, dries them with heated air, refills the onboard mop tank, and uses a gear-driven self-cleaning system. A camera and 3D structured light support obstacle avoidance with recognition for 120 object types, while spinning LiDAR provides navigation and mapping. Additional features include multi-level maps, virtual barriers, no-go zones, carpet boost, live video monitoring, and pet-focused app functions. See additional info
Dreame X40 Master
Vacuum Wars Stars 3.57
The Dreame X40 Master is a high-end robot vacuum and mop built around an 8-in-1 base station that can connect directly to a home’s plumbing for automatic clean-water refilling and wastewater drainage. The compact 11-inch-tall dock also handles debris emptying, hot-water mop washing, heated-air drying, self-cleaning, and dirty-water monitoring. The robot combines a claimed 12,000Pa of suction with an extending side brush and mop pad, liftable and removable mop pads, carpet boost, and 22mm threshold crossing. A camera, 3D structured light, and spinning LiDAR support obstacle avoidance and navigation, with recognition of up to 120 object types. In Vacuum Wars studio evaluations, navigation efficiency and battery life were particular strengths. The app adds multi-level maps, virtual barriers, no-go zones, live video, and pet checkups. See additional info
Dreame X30 Ultra
Vacuum Wars Stars 2.59
The Dreame X30 Ultra is a flagship robot vacuum and mop with 8,300 Pa of official suction and an extensive set of automated cleaning features. Its dual spinning mop pads lift over carpets, while an extending mop pad and RoboSwing movement improve coverage along edges and in tight spaces. The docking station automatically empties debris into a 3.2-liter bag, washes the mop pads with hot water, dries them with heated air, refills the robot, monitors dirty water, and scrubs its own drip tray. A front-mounted camera and 3D structured light support obstacle avoidance with recognition for 70 object types, while spinning LiDAR handles navigation and multi-level mapping. Additional features include carpet boost, virtual barriers, no-go zones, live video monitoring, a 22 mm threshold-crossing specification, a larger internal dustbin, and an official battery life of up to 260 minutes. Testing found strong mopping and navigation, although airflow and carpet deep cleaning trailed the older L20 Ultra despite the X30’s higher official suction rating. See additional info
Dreame X Series Features
X series Navigation and Obstacle Avoidance
Dreame performs well in our obstacle avoidance tests thanks to a multi-technology approach.
- Sensor Fusion: Combines retracting LiDAR, AI‑driven RGB cameras, and LED illumination to detect even small obstacles in low light.
- Remote Video Monitoring: All X models include live video monitoring, which can be useful for pet owners and security purposes.
X series Mopping
Dreame’s X models all include the MopExtend feature, where one of the mopheads stretches to the side to reach along edges, and RoboSwing, which adds an active swinging motion to the extending mop to effectively scrub under low clearances. All mop heads in the X series detach into the dock for vacuum-only runs.
The X60 Max Ultra Complete uniquely adds warm-water mopping, heating the mop water to 104°F/40°C for better grime dissolving. The X60 Max Ultra also increases mopping performance with more scrubbing pressure and faster pad rotation.
X series brushes
The X30 Ultra uses a fixed side brush as in the D series and most of the L series, but in the X40 Ultra, X40 Master, and X50 Ultra, the extendable, lifting side brush becomes a regular fixture. This extending side brush can reach into corners and lift over obstacles to prevent collisions and tangles.
The X30 Ultra, the X40 Ultra, and the X40 Master use the all rubber floating brush that can be replaced with a TriCut antitangle brush, which must be purchased separately.
With the X50 Ultra and the X60 models, we see the first big change in main brush design in the Dreame lineup with the usage of a DuoBrush, where two brushes spin opposite each other for increased suction, which the X50 Ultra boasts at 20,000Pa and the X60 at 35,000.
The X60 Max Ultra Complete also uses a pressure plate to create a semi-seal on carpets to better concentrate the suction (This feature is not present on the X60 Ultra, and it is one of the main differences between the two variants.).
X series Docks
Dreame’s X series robots with “Ultra” in the name all share basically the same docking features:
- Automatic Detergent Dispensing
- Hot water mop cleaning
- Detachable mopheads
- Auto tank refill
- Washboard cleaning
- Fast Charging
- Smart Dirt Detection
The X60 upgrades the mop washing dock substantially, heating the water to 100°C / 212°F for mop washing, bringing the Aqua 10 family’s boiling water innovation to the X-series.
The “Master” X40 model, however, does not have water tanks in the dock, instead using your home’s plumbing system to manage clean and used water from the robot’s mop. We have been interested in this new trend of plumbing integrated robot vacuums, and we expect to see a lot more of these in the future. If you do not want plumbing integration, you must purchase the X40 Ultra instead of the X40 Master.
X Series Suction
With a greater battery capacity, the X series makes some major increases in suction power, maxing out (for now) with 35,000Pa on the new X60 Ultra.
| Model | Suction |
| X30 Ultra | 8,300Pa |
| X40 Ultra | 12,000Pa |
| X40 Master | 12,000Pa |
| X50 Ultra | 20,000Pa |
| X60 Ultra | 35,000Pa |
These are Amazon Links. If you make a purchase, we earn a commission at no additional charge to you.
X50 Ultra and X60 Max Ultra Complete – New Innovations
The latest X60 Max Ultra Complete flagship model introduces threshold climbing up to 88mm, which is a significant upgrade over the typical 20 mm. This builds on the X50’s industry first threshold climbing of 60mm and allows the Dreame X60 to climb a tiered threshold (think a sliding door track) that would otherwise block the path of a robot vacuum.
The X50 Ultra also sports a retracting LiDAR, which brings the profile of the robot down to 89mm for low clearances, while the X60 shrinks this down even further to Dreame’s slimmest ever profile of 79.5mm.
⭐ See our reviews of some of the Dreame X-series models:
Dreame X40 Ultra, X30 Ultra, L20 Ultra Lineup Comparison
Dreame X Series Models
Here are the members of the X series arranged by generation:
Base Model
| Like the X30 Ultra but...
| Like the X40 Ultra but...
| Like the X40 Ultra/Master but...
| Like the X50 Ultra but...
|
As an Amazon Affiliate, we earn a commission if you makerchase, at no additional cost to you.
Aqua10 Series
Update – December 10, 2025
After a pattern of Amazon customer complaints, we’ve removed the Dreame Aqua10 Ultra Roller robot vacuum and mop combo from our Robot Vacuum Top 20 list. Although we didn’t encounter the issue in our lab, multiple users have reported water leaking from the base station. Full Details
Dreame Aqua10 Series Overview
Released in late 2025, the Aqua10 is Dreame’s first lineup with a roller mopping system instead of dual rotary pads. The roller continuously washes with clean water while vacuuming, squeegees dirty water into an on-board dirty water tank, then empties dirty water in the dock. Because dirty liquid is collected onboard instead of remaining in a mop pad, the system can also pick up and process liquid spills rather than simply spreading or absorbing them into the mop. Both Aqua10 models include a full-function PowerDock that automates dustbin emptying, hot-water roller cleaning, and drying. Compared with L/X series rotary mops, Aqua10 aims for deeper, streak-free hard-floor cleaning and stronger hair management, while still protecting carpets.
The Aqua10 series is currently made up of 2 models, the Aqua10 Roller and the more advanced Aqua10 Ultra Roller.
Dreame Aqua10 Ultra Roller
Vacuum Wars Stars 3.37
The Dreame Aqua10 Ultra Roller introduces its first continuous-clean roller mop: a full-width roller that rinses and squeegees itself as it works. In the ultra version, a counter-rotating accessory roller prevents matting so scrubbing power stays high. Carpet is protected by an AutoSeal guard that covers the roller when the robot senses carpet, and a 14 mm mop lift. The roller also extends to the side for better coverage along walls and in corners. ProLeap suspension lets the robot clear 42 mm single thresholds or 60 mm tiered thresholds. Dreame quotes a headline-grabbing 30,000 Pa suction figure—among the highest yet claimed for any robot vacuum. See additional info
Dreame Aqua10 Roller
The Dreame Aqua10 Roller is a robot vacuum and mop featuring Dreame’s AquaRoll continuous-wash roller mopping system. Dreame lists 30,000 Pa of suction, a HyperStream DuoBrush designed to reduce hair tangles, an AutoSeal roller guard to help keep carpets dry, and FlexRise suspension for crossing taller thresholds. Its PowerDock automates dust emptying, water refilling, roller washing with hot water, and heated-air drying. See additional info
Aqua10 Features
Navigation & Threshold Handling
OmniSight 2.0 sensor fusion with the same auto-retracting LiDAR turret that was first introduced on the X50 Ultra, and uses binocular vision for AI object recognition and avoidance.
For threshold handling, the Aqua10 Roller takes the industry-leading 60mm tiered threshold climbing that was previously released on the X50 Ultra, while the Aqua10 Ultra Roller climbs even higher with tiered thresholds of up to 80mm.
Roller Mopping System
The roller mop design is the headlining feature of the Aqua10 series. The AquaRoll™ mop system continuously sprays fresh water on the roller and extracts dirty water in real time. The roller is 10.4 inches wide and can extend to the side for coverage along edges.
On the Aqua10 Ultra Roller, a counter-spinning FluffRoll™ module spins counter to the roller and helps keep the roller from packing down with use to improve friction and contact with the floor’s surface.
When it’s time to vacuum carpets, the AutoSeal™ roller guard closes over the roller to prevent contact with the carpet fibers, and on the Aqua10 Ultra Roller, the mop also lifts 0.55 in to prevent damp carpets and odors.
Brushes & Hair Management
HyperStream™ detangling DuoBrush main brush system with a 100% hair-detangling claim to reduce maintenance. The Aqua10 models both have an extending side brush for corner reach.
Docking & Automation
The All-in-one Powerdock prioritizes sanitation more than ever with a boiling hot water (212 °F) roller deep clean. The Aqua10 Ultra Roller also boasts a new dual detergent system – one for cleaning solution in the clean water tank, and one solution for odor control in the dirty water tank. Both Aqua10 models include:
- Auto-empty (up to 100 days).
- Hot-air drying.
- Auto-refill of clean water and detergent (dual-detergent support).
- Dirt detection rewash logic.
App, Voice, & Pet Features
You can control the robot through the DreameHome app, with third-party voice assistants such as Alexa, Google Assistant, and Siri, or by using Dreame’s native “OK Dreame” voice commands. The Aqua10 also highlights pet-friendly features, including “pet vlogs” that record your pet’s day, along with tools that can entertain your pet, clean up after it, and show its location while you’re away.
Suction
Both models list 30,000 Pa Vormax™ suction, the highest in Dreame’s lineup at the time of launch. (Dreame’s previous flagship model, the X50 Ultra, had only 20,000Pa of official suction.)
|
|
Matrix10 Series
Dreame Matrix10 Series Overview
Announced alongside Aqua10 in 2025, Matrix10 is Dreame’s most advanced robot to date. Its hallmark is a Multi-Mop Switching Dock that automatically swaps mop types for different zones to reduce cross-contamination and tailor cleaning to floor materials. Matrix10 also boasts the robot vacuum industry’s highest threshold climbing for tiered thresholds of up to 3.15 in (≈80 mm) using retractable legs and adaptive suspension—bridging gaps that stop other robots.
Dreame Matrix10 Ultra
Vacuum Wars Stars 3.63
The Dreame Matrix10 Ultra robot vacuum/mop combo features a multi-mop switching dock with a three-solution compartment, producing up to 30,000 Pa of Vormax™ suction and using HyperStream™ Detangling DuoBrush rollers. It employs OmniSight™ navigation to detect over 240 object types and a ProLeap™ system to overcome obstacles up to 80mm high, while its Dual Flex Arm technology extends side brush and mop into corners. The mop pads self-clean at 212 °F with 20 spray nozzles, and lift 10.5mm on carpets to avoid moisture. Its multifunctional PowerDock™ supports auto-emptying a 3.2 L dust bag for up to 100 days, auto water refill, auto solution refill, mop pad and dust bag drying. It also includes voice control options (“OK Dreame” built-in virtual assistant, Alexa/Siri/Google Home) and Matter protocol smart-home integration. See additional info
Matrix10 Features
Navigation & Obstacle Avoidance
Matrix10 uses Dreame’s OmniSight sensor fusion—combining VersaLift retracting LiDAR with Smart 3DAdapt obstacle avoidance and LED illumination—to maintain low-light accuracy, and it’s rated to recognize and avoid 240+ object types.
The threshold climbing on the Matrix10 is Dreame’s new industry leading level of 80mm (3.15 inches) for tiered thresholds, such as sliding doors and other complex room transitions.
Mopping System
The Matrix10 retains the dual spinning mophead design but adds a twist: the dock stores three mop-pad textures, each optimized for different floor types, and automatically swaps them between rooms. This ensures every surface gets the right pad while minimizing cross-contamination between spaces like bathrooms and the kitchen, and the mops lift over carpet to keep fibers dry.
Brushes & Hair Management
The Matrix10 pairs a HyperStream™ detangling DuoBrush—rated for 100% detangling to minimize hair wrap and maintenance—with an extending side brush that reaches deeper into corners and along edges for more complete coverage.
Docking & Automation
Matrix10’s all-in-one PowerDock is Dreame’s most innovative dock yet, taking sanitation to the next level. Instead of sending one set of pads through your whole house, the dock auto-swaps mop types between rooms, so tile, laminate, and other hard floors each get the right texture and cross-contamination is kept to a minimum. After each run (and even mid-run when needed), the dock performs a boiling-water deep clean at 212 °F that flushes grime from the pads, reducing odors and keeping the mops sanitary for the next zone.
There are compartments for 3 types of solution: floor cleaning and wood cleaning for the clean water tank, and an odor managing solution for the dirty tank.
Beyond mop handling, the dock also automates the routine upkeep that makes the robot truly hands-off:
- Auto-emptying the dustbin
- Self-refill of clean water and solution
- Hot-air drying of the mop pads
- Fast charging between jobs
- Smart dirt detection to trigger targeted re-cleaning
Suction
The Martix10’s Vormax suction has an official rating of 30,000Pa, matching the higher suction numbers on the Aqua10. This is extremely high suction for a robot vacuum.
App, Voice & Pet-Care
Control is straightforward with the DreameHome app, third-party voice assistants (Alexa/Google/Siri), and Dreame’s native “OK Dreame” voice commands. For pet owners, built-in pet-care conveniences streamline fur pickup and trigger odor-management workflows to keep floors and fabrics fresher between deep cleans.
Dreame Lineup Evolution Summary
- D Series: Entry‑level models using a plate mop system. Affordable, basic robot vacuum/mop.
- L Series: Mid‑range models that introduce dual rotary mopheads, advanced docking, and more sophisticated navigation.
- X Series: Premium models with innovations such as retracting LiDAR, advanced side brushes, and the anticipated breakthrough threshold climbing in the X50 series.
- Aqua10 Series: Late 2025 releases with next-generation threshold crossing, suction, sanitation, and Dreame’s first roller mop system
- Matrix10: Late 2025 premium release with Multi-function dock that cleans and store 3 textures of mop pads, cleaning and wood care solutions, and next-generation suction and sanitation
Final Takeaway
Dreame’s core focus has been on AI navigation and obstacle avoidance—to deliver a largely hands‑off cleaning experience. While the basic mechanical design remains consistent, changes such as the dual rotary mopheads in the L series and the high‑end innovations in the Matrix10 mark significant steps forward. With groundbreaking threshold crossing technology in hand, Dreame has positioned themselves as a heavy-weight competitor in the robot vacuum industry.
Want to help your robot vacuum clean better?
Keeping it in top condition only takes a few minutes each week. Our complete Robot Vacuum Maintenance Guide covers everything from emptying bins and cleaning filters to caring for mop pads and multi-functional docks—so your robot keeps running at peak performance for years to come. Read the full guide →
